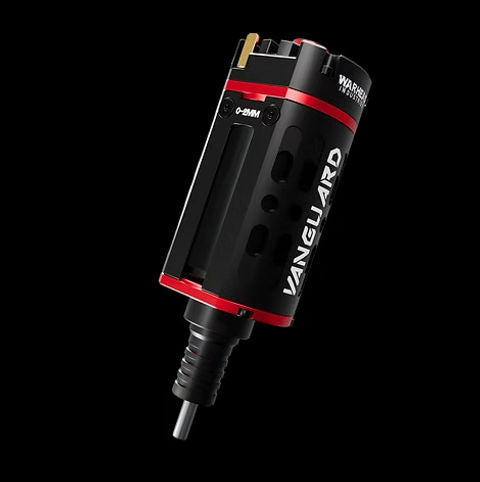

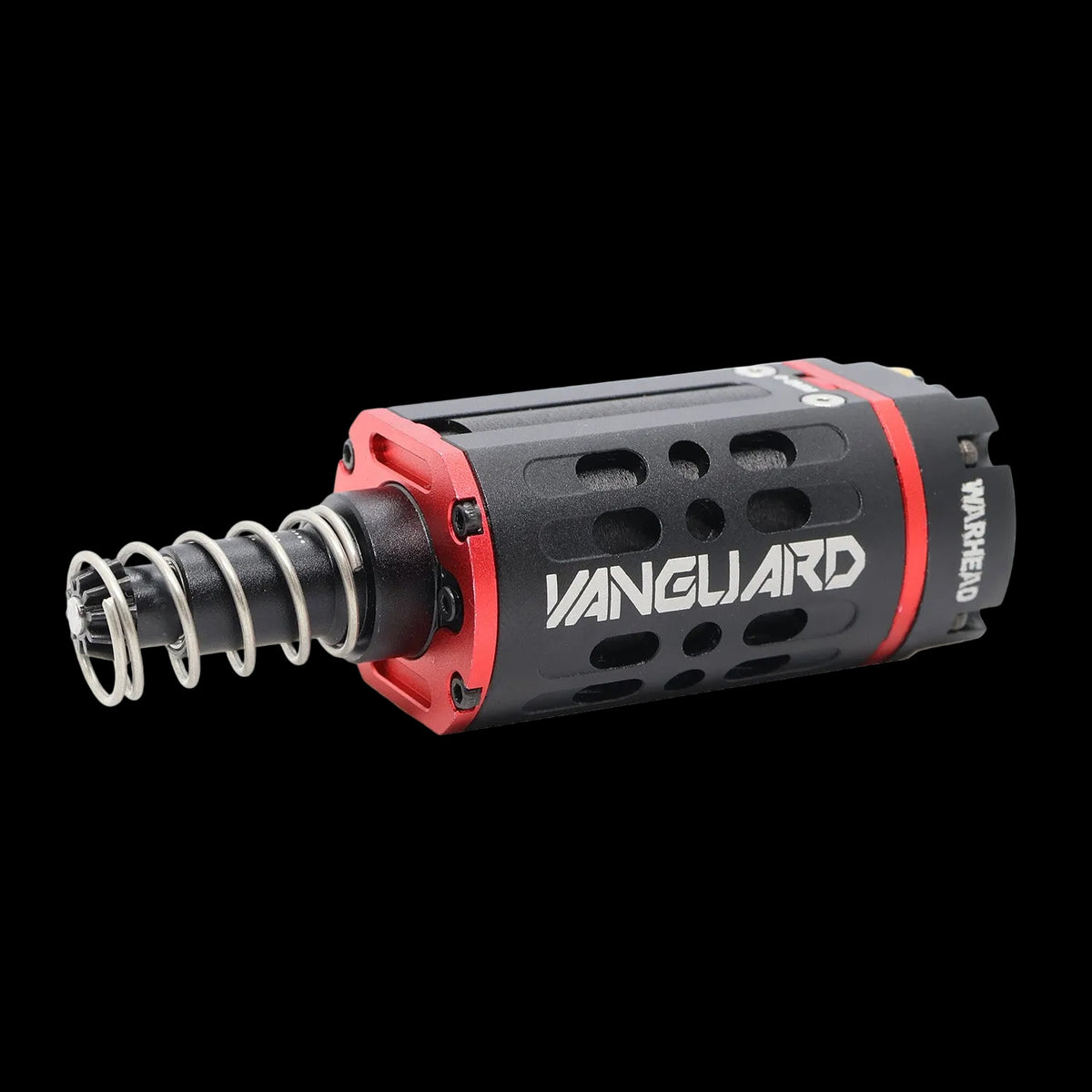

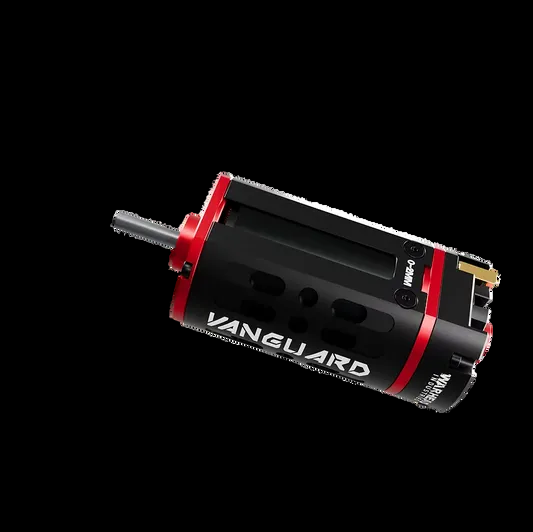

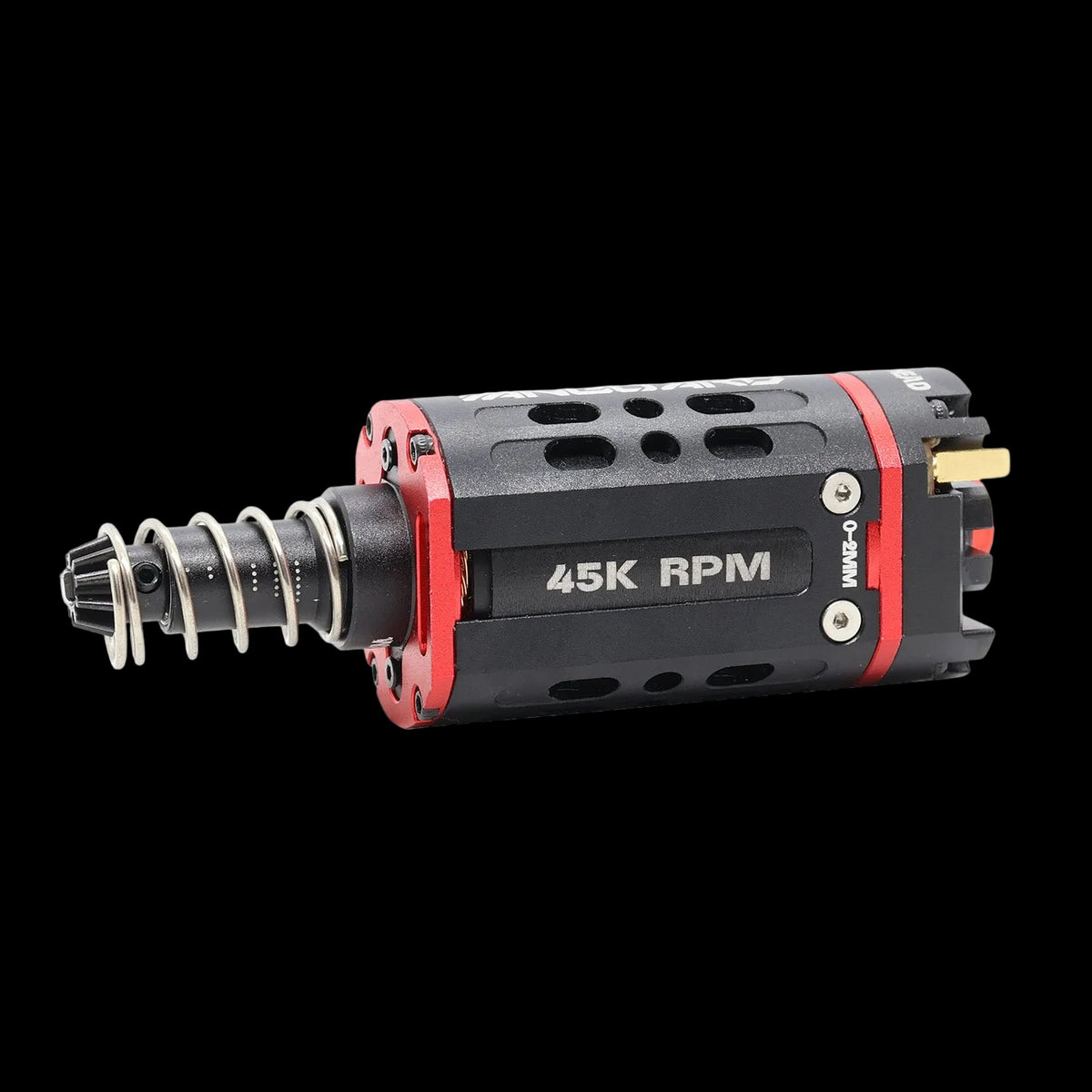

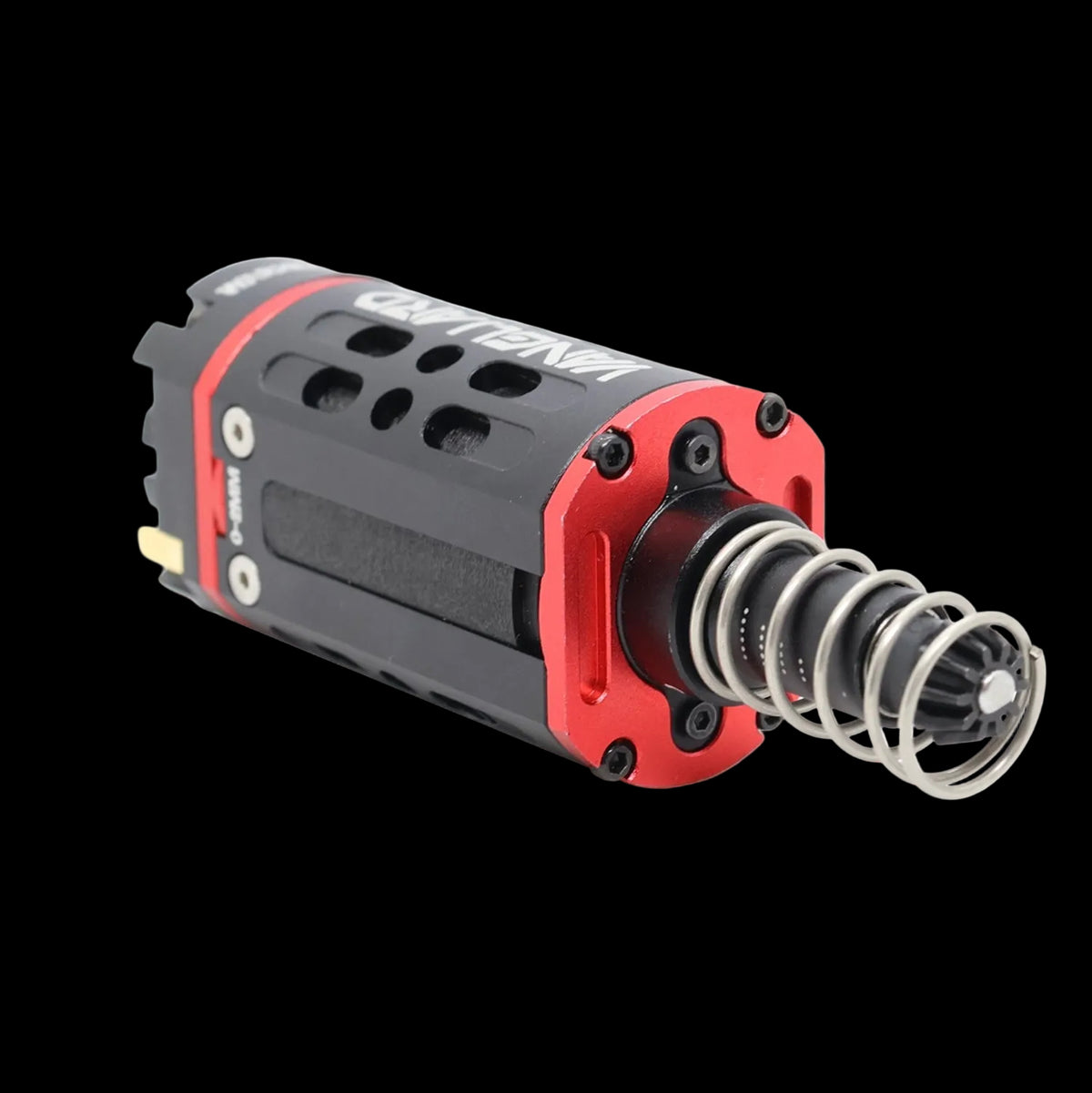

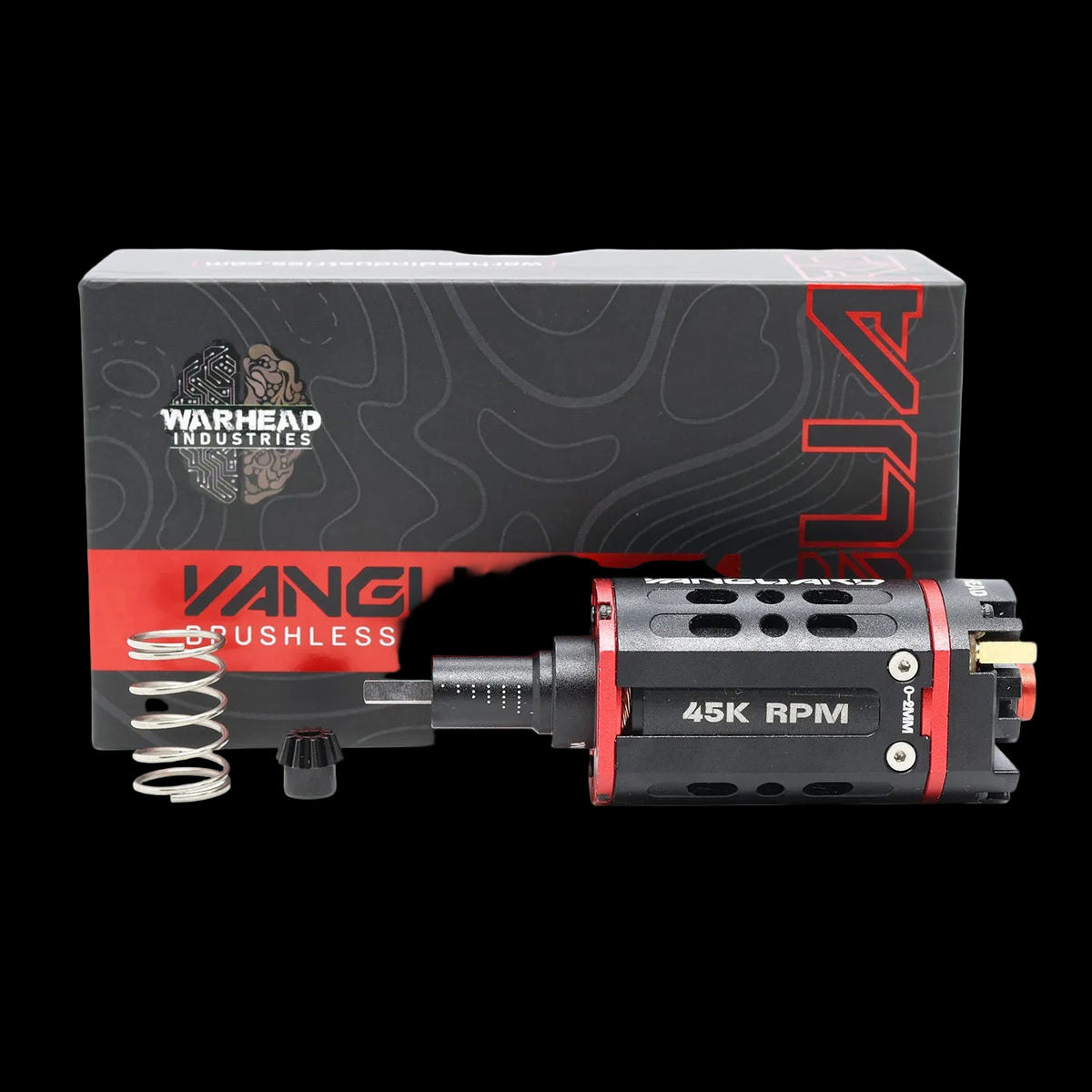

Dinamo Airsoft Warhead Vanguard Brushless Motor - 45,000 RPM & 35,000 RPM

The Warhead Industries Vanguard Brushless AEG Motor is the culmination of years of development, testing, and engineering innovation, representing the most advanced motor platform ever produced by Warhead Industries. Rather than refining an existing design, the Vanguard was engineered from a blank sheet with a singular objective: create the highest-performance, most adaptable, and most serviceable brushless AEG motor on the market.

Every component within the Vanguard has been optimized for maximum performance. A hand-wound stator featuring over 200 ultra-thin laminations works in conjunction with a completely redesigned rotor assembly and next-generation magnet system to deliver exceptional torque, efficiency, and responsiveness. Combined with the powerful REDFET controller and high-speed 32-bit processing architecture, the Vanguard achieves near-instant signal processing and trigger response measured in milliseconds, providing unparalleled control and consistency under load.

The Vanguard's modular architecture introduces a level of adjustability and serviceability rarely seen in airsoft motors. Adjustable width and height controls allow the motor to fit virtually any grip perfectly, while the removable front cap enables bearing replacement and conversion between D-type and O-type shafts, as well as long and short shaft configurations. CNC-machined gold-plated brass connectors, oversized bearings, and a precision-engineered cooling system ensure maximum durability and electrical efficiency even in the most demanding builds.

Advanced protection systems continuously monitor motor operation, safeguarding against gearbox lock-ups, over-current conditions, excessive temperatures, and voltage spikes. The result is a motor capable of delivering extraordinary performance while maintaining the reliability required for competitive and professional-level use.

Whether powering a high-speed competition rifle, a high-torque DMR build, or the ultimate custom gearbox project, the Vanguard establishes a new benchmark for brushless AEG motor technology and showcases what is possible when performance is engineered without compromise.

Features:

• Premium brushless motor and controller system
• Hand-wound stator with over 200 laminates & advanced rotor design
• Extreme torque and instant trigger response

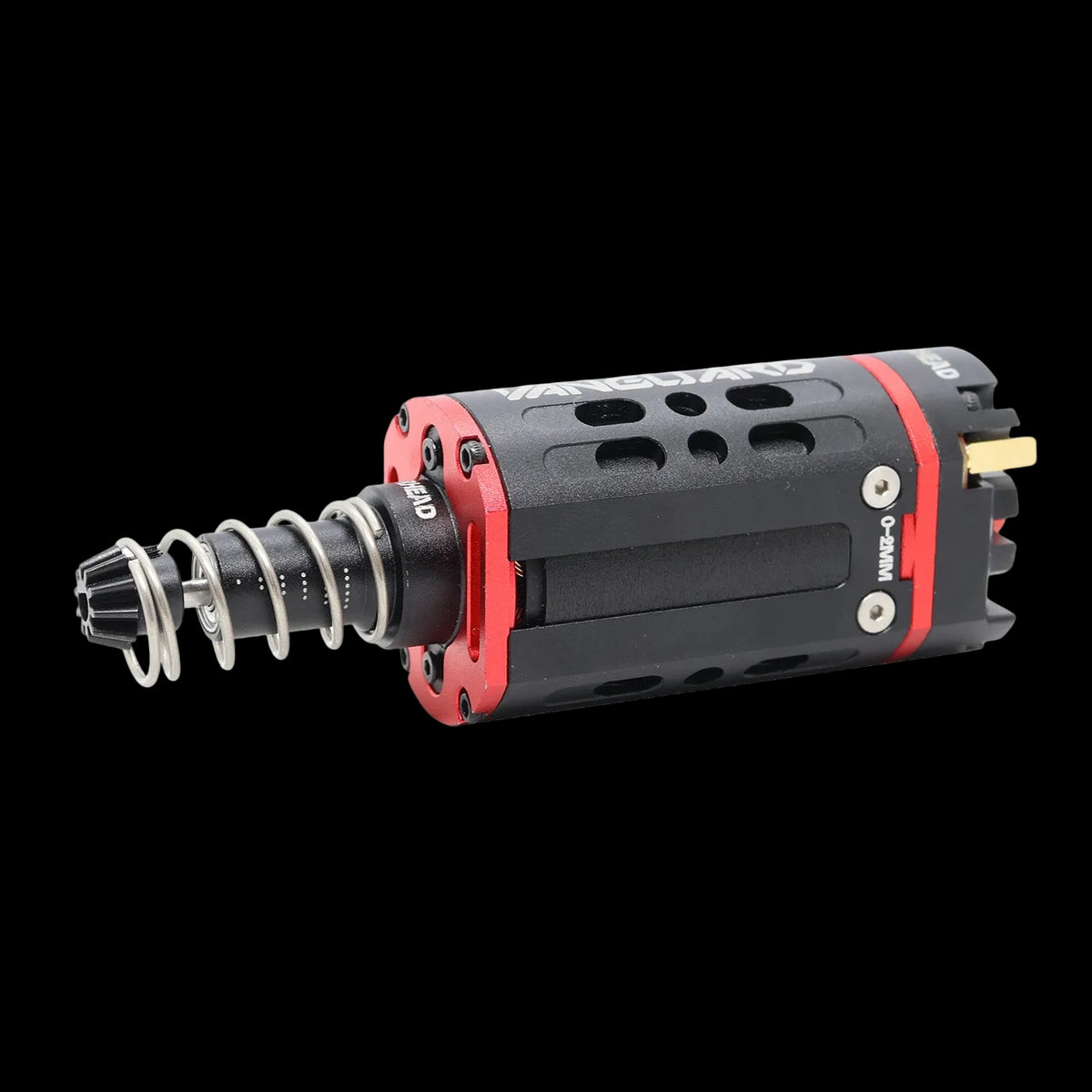

• Removable front cap for the ability to replace bearings, swap D type shaft to O type, swap from long to short shaft

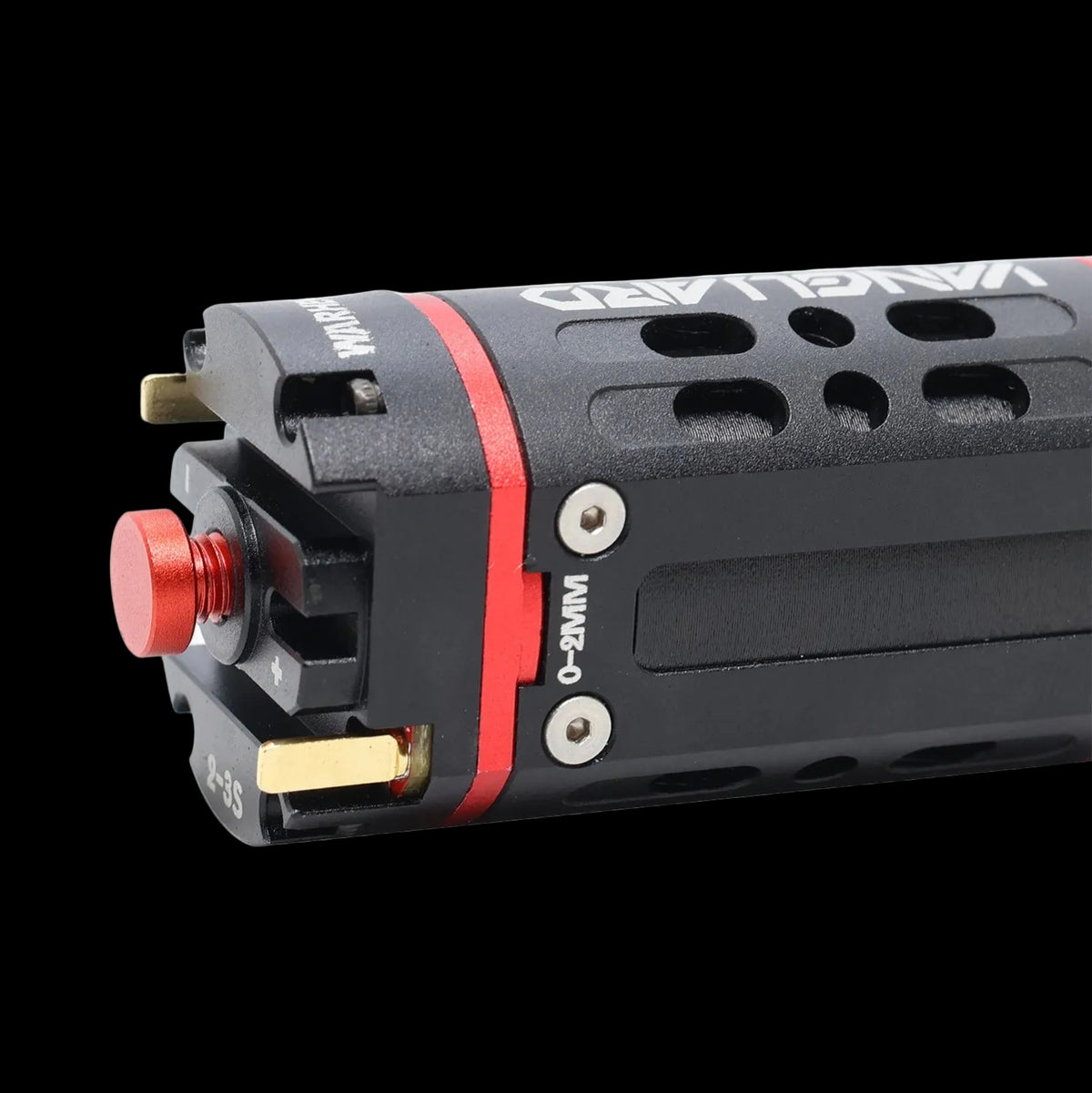

• Adjustable top screw

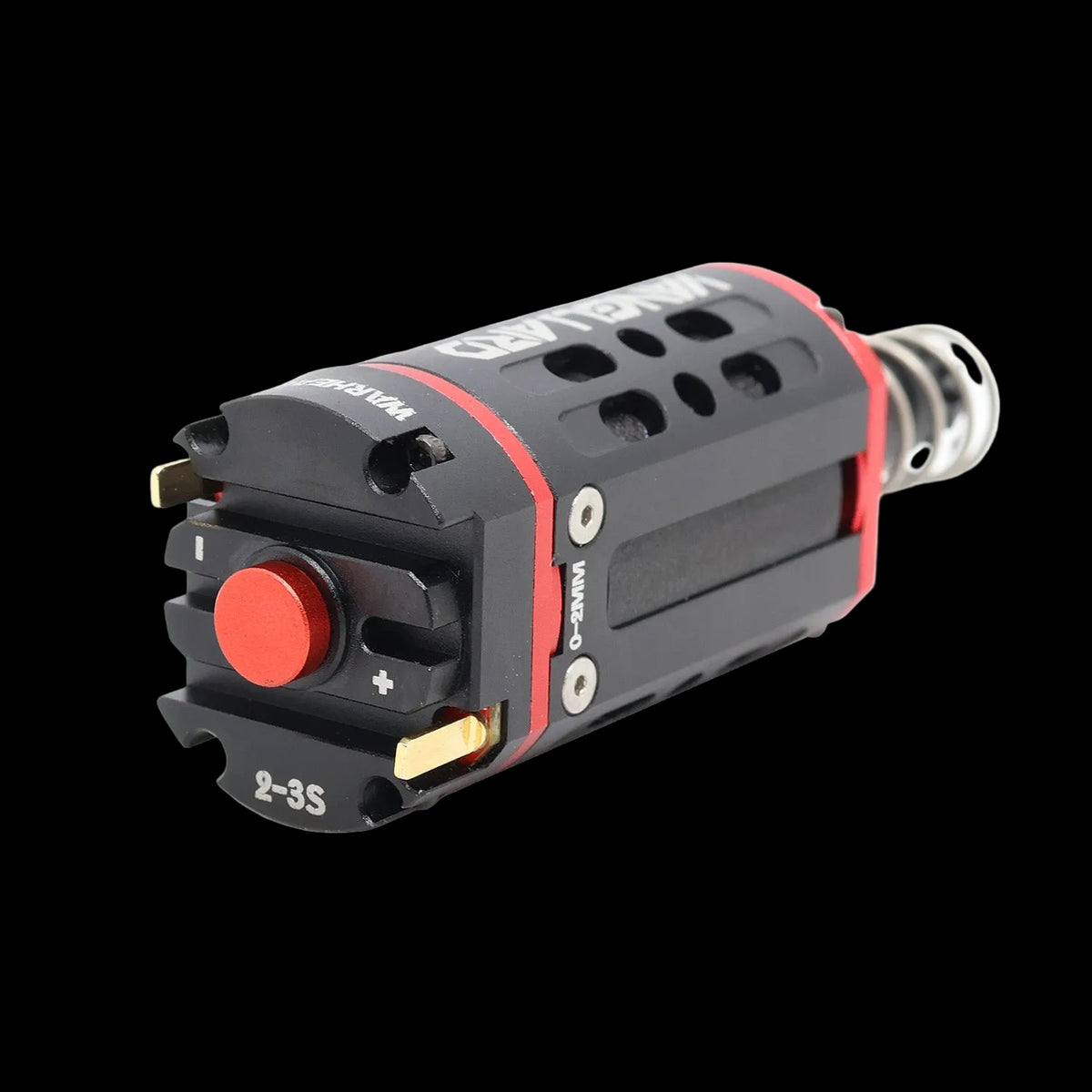

• Custom CNC Gold plated Brass connector tabs capable of withstanding 15kg of side force
• Adjustable side screws and shims to allow the motor to fit snug into any grip perfectly
• Optimized cooling and thermal protection
• Over-current and voltage spike protection
• True reverse-polarity protection

Specifications:

• Body material: 7075 Aluminium Billet
• Motor weight: 124g
• Dimensions: 88.5mm x 29.5mm x 25mm
• Supported gear types: D type and O type
• Supported shaft lengths: Long and Short
• Air gap: less than 0.5mm
• Magnet gap: 0.83mm
• Rotor weight: 26g
• One way bearing support: Yes
• Active brake: Yes
• Maximum supported spring size: M190
• Compatible battery cell count: 7.4v & 11.1v
• Motor response time under load: 4-6.1ms
• Controller maximum AMPs: 65a (continuous)
• Temperature cut off: 74°C
• Peak rated AMPs: 115A (1 second)

Safety & Protection systems:

• Super fast gearbox lock up protection
• Temperature monitoring and protection
• Rapid voltage spike protection
• Auto over temperature cutoff
• Over current protection
